Chip scheme : TEA 2016 (NXP master PFC + LC) + (inno Gan MOS) + tea1995 (NXP synchronous rectification) + sw3516 (Zhirong PD protocol)
Input 100-240V AC 3.5A 50Hz / 60Hz
Size:110*78*33 mm
Power density :0.81w/m³ Cert: CB/KC/TUV US/PSE/CE/3C

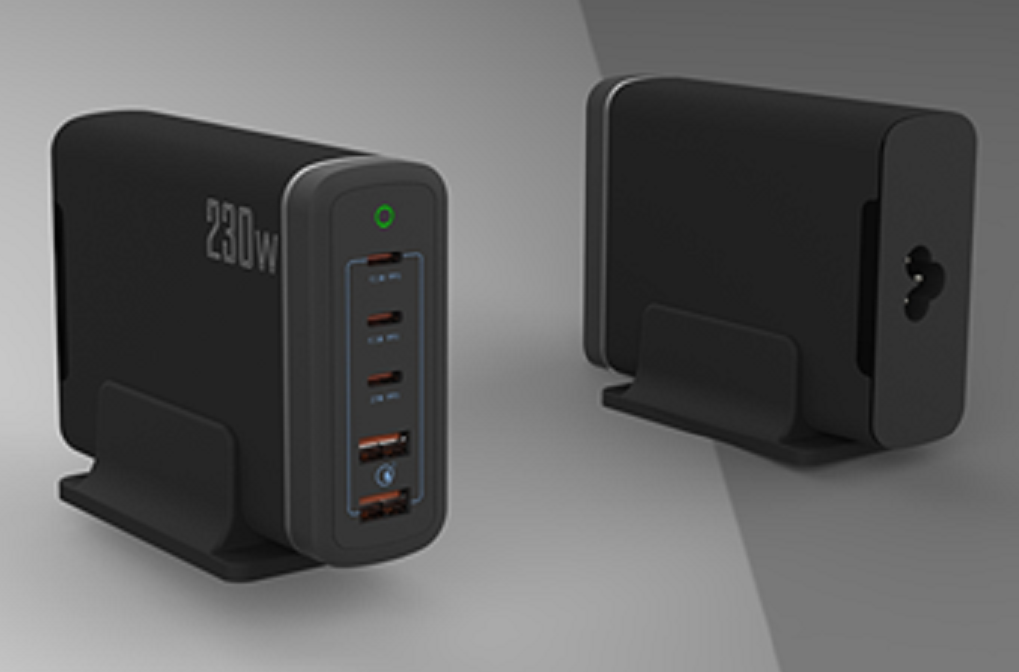

Solution 1
C1: 5V3A / 9V3A /12V3A / 15V3A / 20V5A
C2: 5V3A / 9V3A /12V3A / 15V3A / 20V4.5A
C3: 5V3A / 9V2.77A / 12V 2.08A
A1/A2 : 5V3A / 9V2A / 12V1.5A 230W(Max)

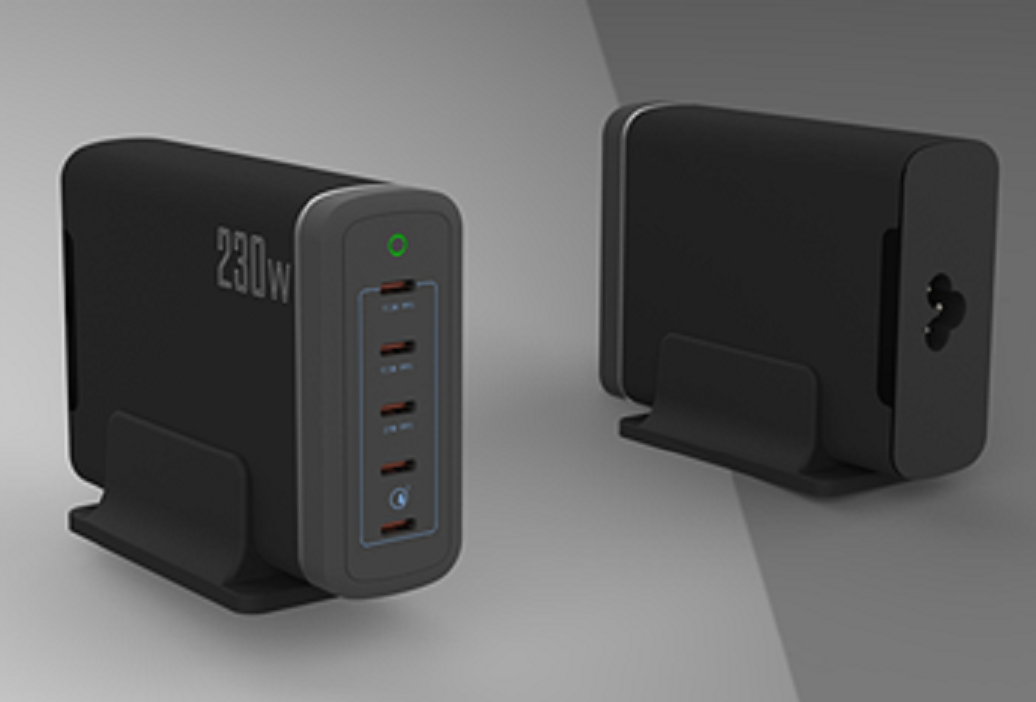

Solution 2
C1:5V3A /9V3A /12V3A /15V3A /20V5A
C2:5V3A 9V3A 12V3A /15V3A 20V4.5A
C3:5V3A 9V2.77A 12V2.08A
C4/C5:5V 3A / 9V 2A/12V 1.5A 230W(Max)

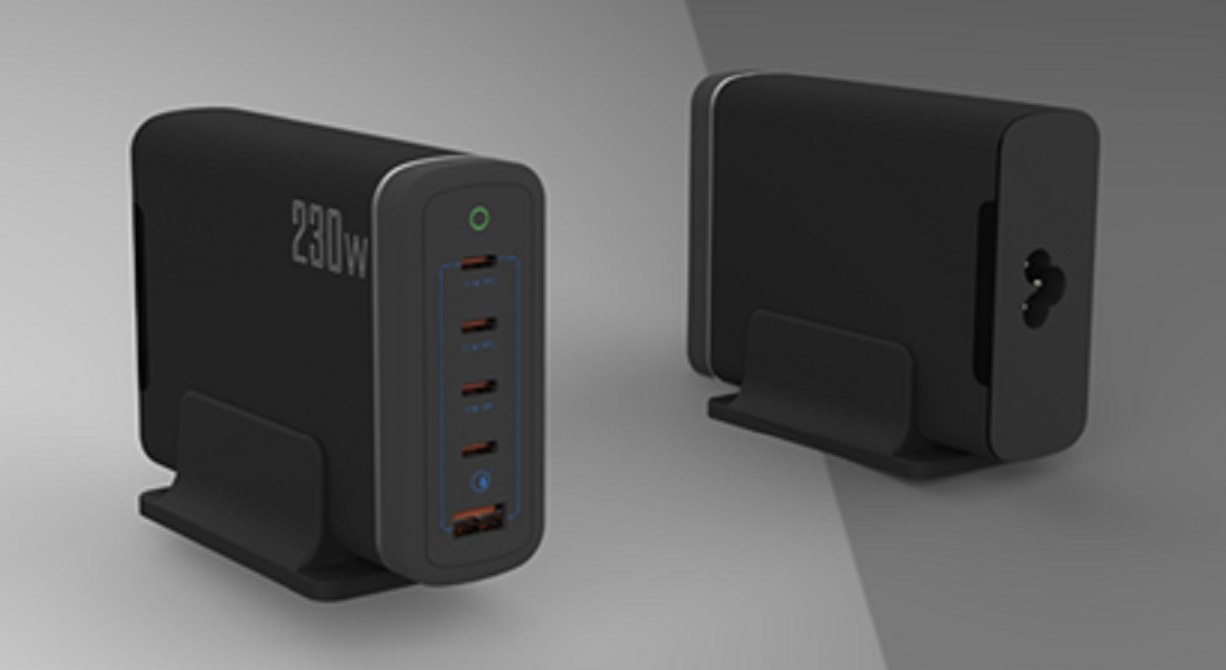

Solution 3
C1: 5V3A 9V3A 12V3A /15V3A /20V5A
C2: 5V3A 9V3A 12V 3A /15V3A/ 20V4.5A
C3: 5V3A 9V2.77A/ 12V2.08A
C4: 5V3A 9V2A 12V 1.5A
A1: 5V3A/ 9V2A/ 12V1.5A 230W (Max)
